5B/SPB Dual Duty Taper Lock V Belt Pulleys Including Bush Section

 1,620.00 41,113.00

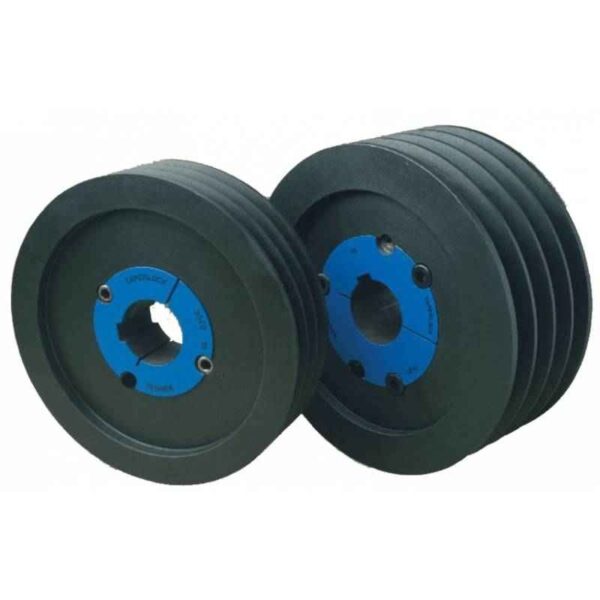

5B/SPB Dual Duty Taper Lock V Belt Pulley with Bush

A durable and versatile pulley designed for SPB section V belts, featuring a taper lock system for quick installation. Ideal for smooth and efficient power transmission in industrial applications. Bush included for easy mounting.


Available Options

ThumbnailPulley SizeStockPriceQuantity
Dia 125 MM - TLB SIZE 2012

In Stock

 1,620.00
Dia 132 MM - TLB SIZE 2012

In Stock

 1,788.00
Dia 140 MM - TLB SIZE 2012

In Stock

 1,884.00
Dia 150 MM - TLB SIZE 2517

In Stock

 2,200.00
Dia 160 MM - TLB SIZE 2517

In Stock

 2,467.00
Dia 170 MM - TLB SIZE 3020

In Stock

 2,811.00
Dia 180 MM - TLB SIZE 3020

In Stock

 3,033.00
Dia 190 MM - TLB SIZE 3020

In Stock

 3,361.00
Dia 200 MM - TLB SIZE 3020

In Stock

 3,614.00
Dia 212 MM - TLB SIZE 3020

In Stock

 3,889.00
Dia 224 MM - TLB SIZE 3020

In Stock

 4,232.00
Dia 236 MM - TLB SIZE 3020

In Stock

 4,345.00
Dia 250 MM - TLB SIZE 3020

In Stock

 5,335.00
Dia 265 MM - TLB SIZE 3535

In Stock

 7,090.00
Dia 280 MM - TLB SIZE 3535

In Stock

 7,475.00
Dia 300 MM - TLB SIZE 3535

In Stock

 7,585.00
Dia 315 MM - TLB SIZE 3535

In Stock

 7,651.00
Dia 335 MM - TLB SIZE 3535

In Stock

 8,099.00
Dia 55 MM - TLB SIZE 3535

In Stock

 8,250.00
Dia 375 MM - TLB SIZE 3535

In Stock

 8,861.00
Dia 400 MM - TLB SIZE 3535

In Stock

 9,551.00
Dia 425 MM - TLB SIZE 3535

In Stock

 10,126.00
Dia 450 MM - TLB SIZE 3535

In Stock

 10,665.00
Dia 475 MM - TLB SIZE 3535

In Stock

 11,283.00
Dia 500 MM - TLB SIZE 3535

In Stock

 11,550.00
Dia 530 MM - TLB SIZE 4040

In Stock

 13,137.00
Dia 560 MM - TLB SIZE 4040

In Stock

 14,581.00
Dia 600 MM - TLB SIZE 4040

In Stock

 15,780.00
Dia 630 MM - TLB SIZE 4040

In Stock

 18,288.00
Dia 710 MM - TLB SIZE 4040

In Stock

 20,411.00
Dia 762 MM - TLB SIZE 4040

In Stock

 22,635.00
Dia 800 MM - TLB SIZE 4040

In Stock

 25,286.00
Dia 900 MM - TLB SIZE 4545

In Stock

 29,139.00
Dia 1000 MM - TLB SIZE 4545

In Stock

 34,180.00
Dia 1250 MM - TLB SIZE 4545

In Stock

 41,113.00

5B/SPB Dual Duty Taper Lock V Belt Pulleys Including Bush Section

Taper Lock V-belt pulleys in SPB profile are the basic type of V-belt pulleys. They are produced in standard series and dimensions from gray cast iron. Their design is based on the ISO 4183 (DIN 2211) standard.
The pulleys are mounted to the shafts by means of Taper Lock cone bushings, thanks to which there is not only a fixing on the shaft with a keyway, but also the axial locking against displacement.

Pulleys Fields of Use
The 5B/SPB V-belt pulleys for Taper bush meet the highest requirements of modern drive technology and are used in all areas of mechanical engineering, from fine mechanics to heavy engineering.

They are typically used in compressors, blowers, machine tools, in the paper and chemical industry and in many other machines.

Pulleys Material
Fine grain cast-iron grade 220–260.

Key Features:
• Dual Duty Design: Compatible with SPB section V belts, ensuring versatility for various industrial applications.
• Precision Engineering: Crafted from high-quality materials for optimal strength, performance, and longevity.
• Taper Lock System: Allows for quick and secure mounting with the included taper lock bush, facilitating easy installation and removal.
• Enhanced Efficiency: Provides smooth, reliable power transmission, reducing wear and tear on belts and machinery.
• Corrosion Resistance: Special coating to protect against environmental and operational damage.
Applications:
Ideal for use in mechanical systems across industries such as manufacturing, agriculture, and automotive. Suitable for conveyors, compressors, pumps, and more.
Specifications:
• Number of Grooves: 5
• Compatible Belt Type: SPB section V belts
• Material: High-grade cast iron/steel
• Mounting System: Taper lock (bush included)
Package Includes:
• 1x 5B/SPB Taper Lock V Belt Pulley
• 1x Taper Lock Bush
Choose the 5B/SPB Dual Duty Taper Lock V Belt Pulley for a seamless, robust, and reliable solution for your power transmission needs.
