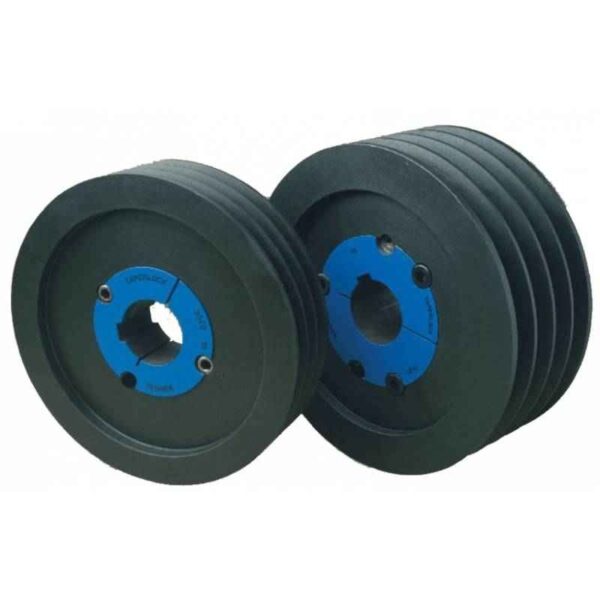

6C/SPC Dual Duty Taper Lock V Belt Pulleys Including Bush Section

Taper Lock V-belt pulleys in SPC profile are the basic type of V-belt pulleys. They are produced in standard series and dimensions from gray cast iron. Their design is based on the ISO 4183 (DIN 2211) standard.

The pulleys are mounted to the shafts by means of Taper Lock cone bushings, thanks to which there is not only a fixing on the shaft with a keyway, but also the axial locking against displacement.

Pulleys Fields of Use

The 6C/SPC V-belt pulleys for Taper bush meet the highest requirements of modern drive technology and are used in all areas of mechanical engineering, from fine mechanics to heavy engineering.

They are typically used in compressors, blowers, machine tools, in the paper and chemical industry and in many other machines.

Pulleys Material

Fine grain cast-iron grade 220–260.

Key Features:

• Dual Duty Design: Compatible with SPC section V belts, ensuring versatility for various industrial applications.
• Precision Engineering: Crafted from high-quality materials for optimal strength, performance, and longevity.
• Taper Lock System: Allows for quick and secure mounting with the included taper lock bush, facilitating easy installation and removal.
• Enhanced Efficiency: Provides smooth, reliable power transmission, reducing wear and tear on belts and machinery.
• Corrosion Resistance: Special coating to protect against environmental and operational damage.

Applications:

Ideal for use in mechanical systems across industries such as manufacturing, agriculture, and automotive. Suitable for conveyors, compressors, pumps, and more.

Specifications:

• Number of Grooves: 6
• Compatible Belt Type: SPC section V belts
• Material: High-grade cast iron/steel
• Mounting System: Taper lock (bush included)

Package Includes:

• 1x 6C/SPC Taper Lock V Belt Pulley
• 1x Taper Lock Bush

Choose the 6C/SPC Dual Duty Taper Lock V Belt Pulley for a seamless, robust, and reliable solution for your power transmission needs.
